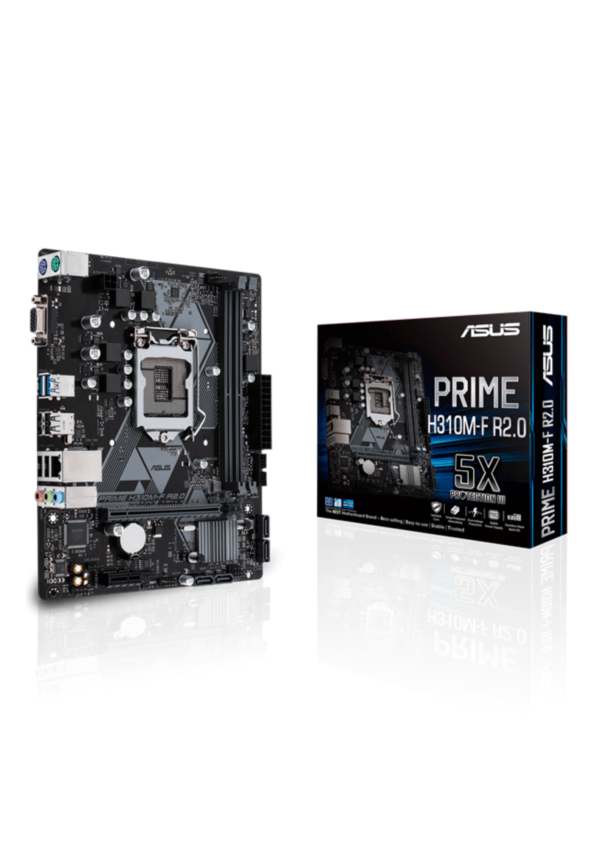

Asus Prime H310M-F R2.0 Intel LGA1151 DDR4 Micro ATX

Available for Preorder
Estimated Delivery: 7-12 days

• Socket: LGA 1151
• Supported Processors: 9th/8th Gen Intel® Core™, Pentium® Gold, and Celeron® (Supports Intel® Turbo Boost Technology 2.0)
• Chipset: Intel® H310
• Slots: 2 x DIMM, up to 32GB DDR4
• Speeds: 2666/2400/2133 MHz (non-ECC, unbuffered, Dual Channel)
• Features: Intel® XMP support
• Integrated Graphics: Intel® HD Graphics (via D-Sub, max. resolution 1920×1200 @ 60Hz)
• Shared Memory: 1024MB
• PCIe:
• 1 x PCIe 3.0/2.0 x16 (x16 mode)
• 1 x PCIe 2.0 x1
• SATA Ports: 4 x SATA 6Gb/s
• LAN: Realtek® RTL8111H, 1 x Gigabit LAN
• Audio: Realtek ALC887/897, 8-Channel High Definition with audio shielding and dedicated PCB layers
• Front USB:
• 2 x USB 3.1 Gen 1
• 2 x USB 2.0
• Rear USB:
• 2 x USB 3.1 Gen 1 (Type-A)
• 4 x USB 2.0
• ASUS 5X Protection III: SafeSlot Core, LANGuard, Overvoltage Protection, Stainless Steel Back I/O, DIGI+ VRM
• ASUS OptiMem: Improved DDR4 stability
• ASUS Quiet Thermal Solution: Fanless design, ASUS Fan Xpert
• ASUS EZ DIY: CrashFree BIOS 3, EZ Flash 3, UEFI BIOS EZ Mode

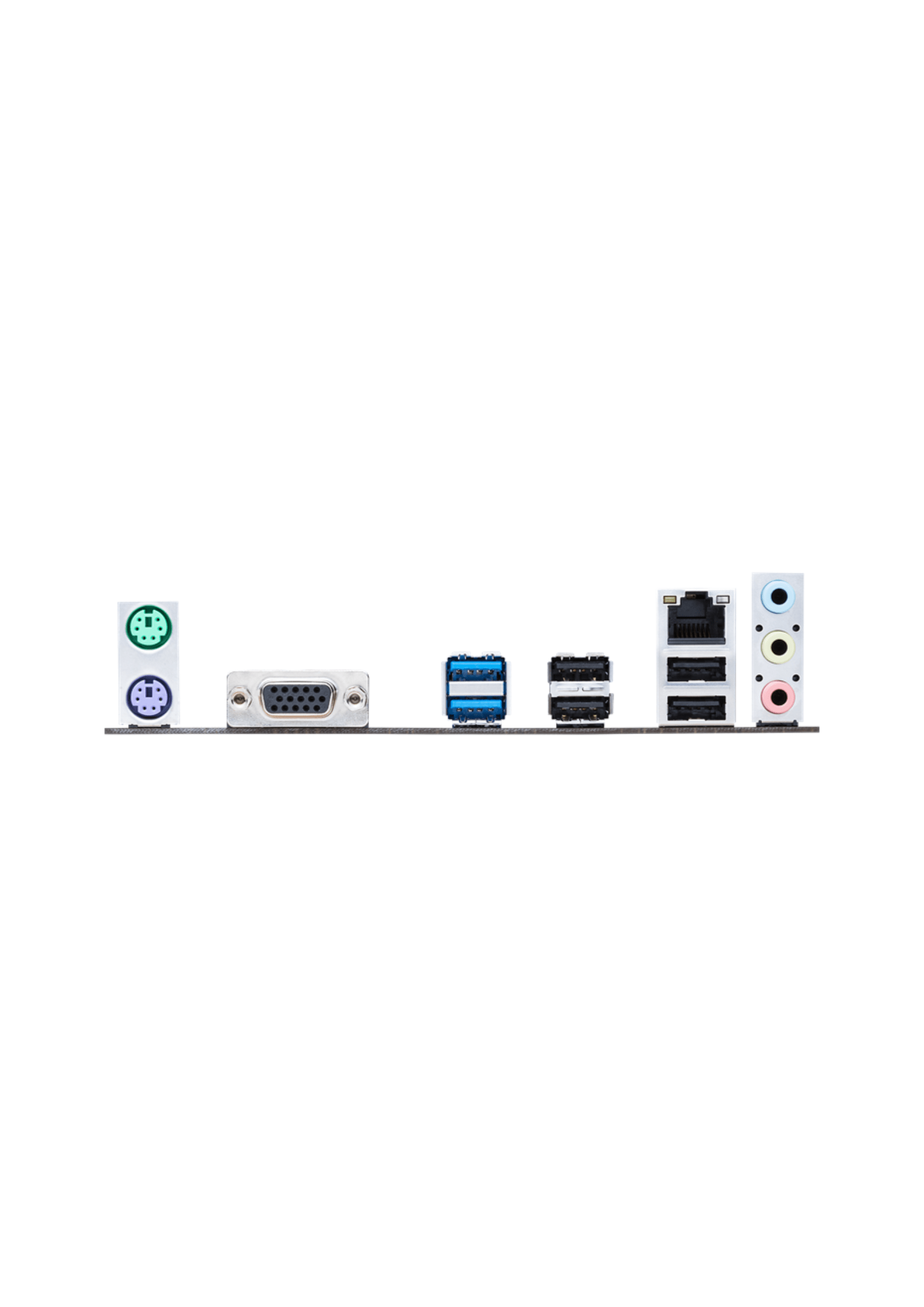

• Ports:
• 1 x PS/2 Keyboard, 1 x PS/2 Mouse
• 1 x D-Sub, 1 x LAN (RJ45)
• 2 x USB 3.1 Gen 1 (Type-A), 4 x USB 2.0
• 3 x Audio Jacks
• Cooling:
• 1 x CPU Fan (4-pin), 1 x Chassis Fan (4-pin)
• Power:
• 1 x 24-pin EATX, 1 x 4-pin ATX 12V
• Storage:
• 4 x SATA 6Gb/s
• Additional:
• 1 x Front Panel Audio (AAFP), 1 x System Panel, 1 x Clear CMOS, 1 x Speaker Connector
• Included: User manual, I/O Shield, 2 x SATA 6Gb/s cables
• Size: 64 Mb Flash ROM, UEFI AMI BIOS with multi-language support
• Support: WOL by PME, PXE
• Size: uATX (8.4 x 7.0 inches / 21.34 x 17.78 cm)
