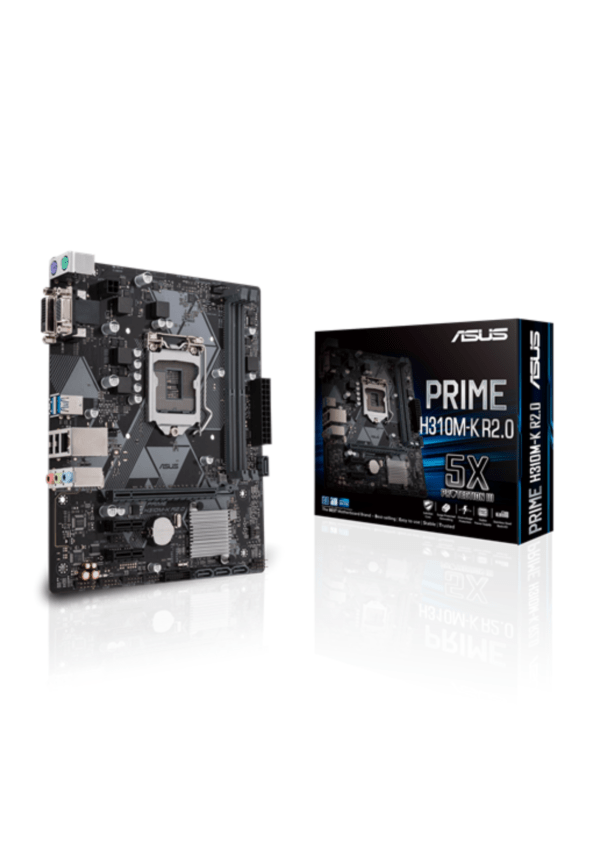

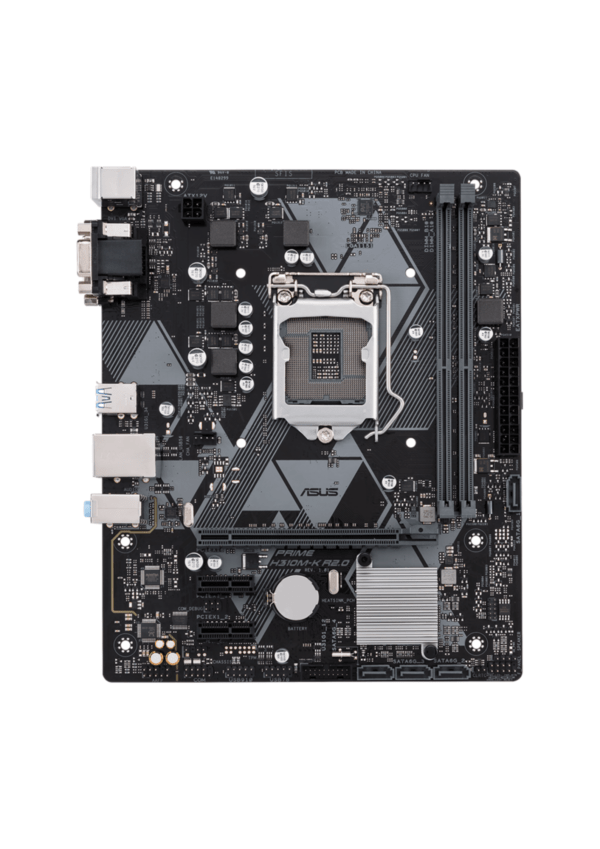

Asus Prime H310M-R R2.0 Intel LGA1151 DDR4 Micro ATX

Available for Preorder
Estimated Delivery: 7-12 days

• Socket: Intel® LGA 1151
• Supported Processors: 9th/8th Gen Intel® Core™ i7/i5/i3, Pentium®, and Celeron® processors
• Chipset: Intel® H310
• Intel® Turbo Boost Technology 2.0: Supported (depends on CPU type)
• Slots: 2 x DIMM, up to 32GB DDR4
• Speeds: 2666/2400/2133 MHz (non-ECC, unbuffered, dual channel)
• Features: Intel® XMP support, OptiMem technology for enhanced stability
• Integrated Graphics: Intel® HD Graphics (DVI-D and D-Sub)
• Max Resolutions:
• DVI-D: 1920 x 1200 @ 60 Hz
• D-Sub: 1920 x 1200 @ 60 Hz
• Shared Memory: 1024MB
• PCIe:
• 1 x PCIe 3.0/2.0 x16 (x16 mode)
• 2 x PCIe 2.0 x1
• SATA Ports: 4 x SATA 6Gb/s
• LAN: Realtek® RTL8111H, 1 x Gigabit LAN
• Audio: Realtek® ALC887 8-Channel HD Audio with audio shielding, dedicated PCB layers, and premium Japanese capacitors
• Front USB:
• 2 x USB 3.1 Gen 1 (Type-A)
• 4 x USB 2.0/1.1
• Rear USB:
• 2 x USB 3.1 Gen 1 (Type-A)
• 2 x USB 2.0/1.1
• ASUS 5X Protection III: SafeSlot Core, LANGuard, Surge Protection, Stainless Steel Back I/O, DIGI+ VRM
• ASUS EPU: Energy-saving power management
• ASUS Silent Thermal Solution: Fanless design, Fan Xpert
• EZ DIY: ASUS CrashFree BIOS 3, EZ Flash 3, UEFI BIOS EZ Mode

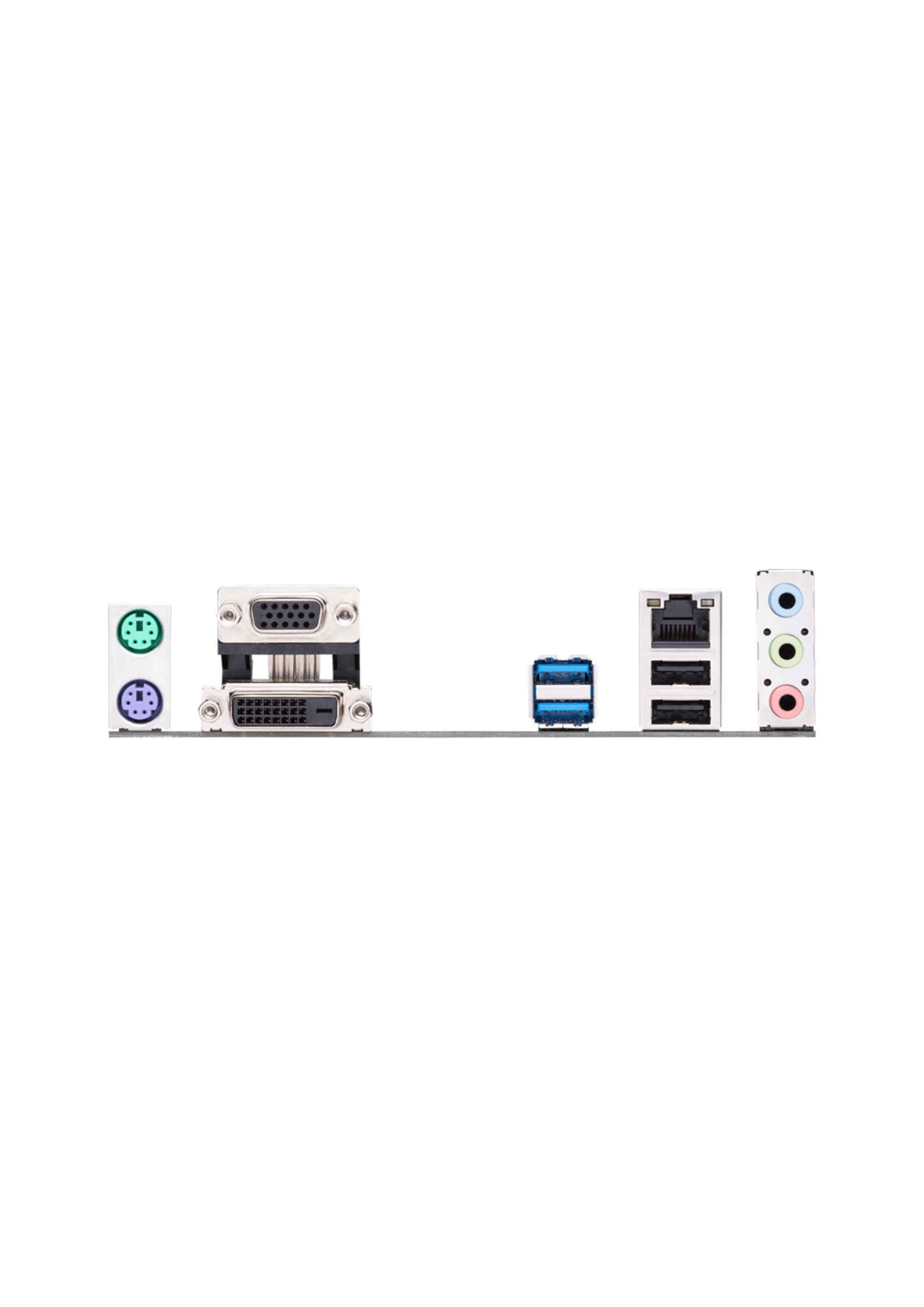

• Ports:
• 1 x PS/2 Keyboard, 1 x PS/2 Mouse
• 1 x DVI-D, 1 x D-Sub
• 1 x LAN (RJ45)
• 2 x USB 3.1 Gen 1 (Type-A)
• 2 x USB 2.0
• 3 x Audio Jacks
• Cooling:
• 1 x CPU Fan (4-pin), 1 x Chassis Fan (4-pin)
• Power:
• 1 x 24-pin EATX, 1 x 4-pin ATX 12V
• Storage:
• 4 x SATA 6Gb/s
• USB:
• 1 x USB 3.0 header (2 ports)
• 2 x USB 2.0 headers (4 ports)
• Additional:
• 1 x COM Port, 1 x S/PDIF Out, 1 x System Panel, 1 x Speaker, 1 x Front Panel Audio (AAFP), 1 x Clear CMOS Jumper
• Included: User manual, I/O Shield, 2 x SATA cables, Support DVD
• Size: 128 Mb Flash ROM, UEFI AMI BIOS with multilingual support
• WOL by PME, PXE
• Size: mATX (8.9 x 7.3 inches / 22.6 x 18.5 cm)
