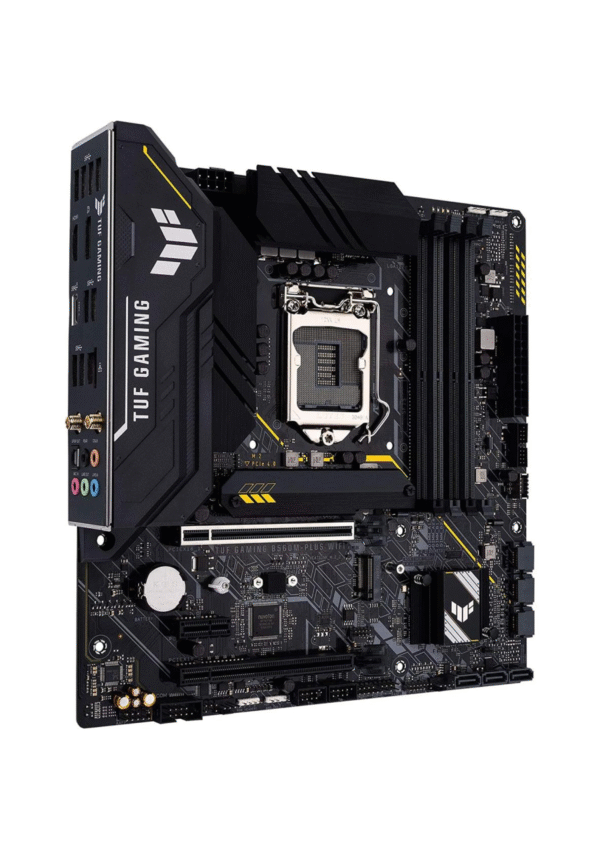

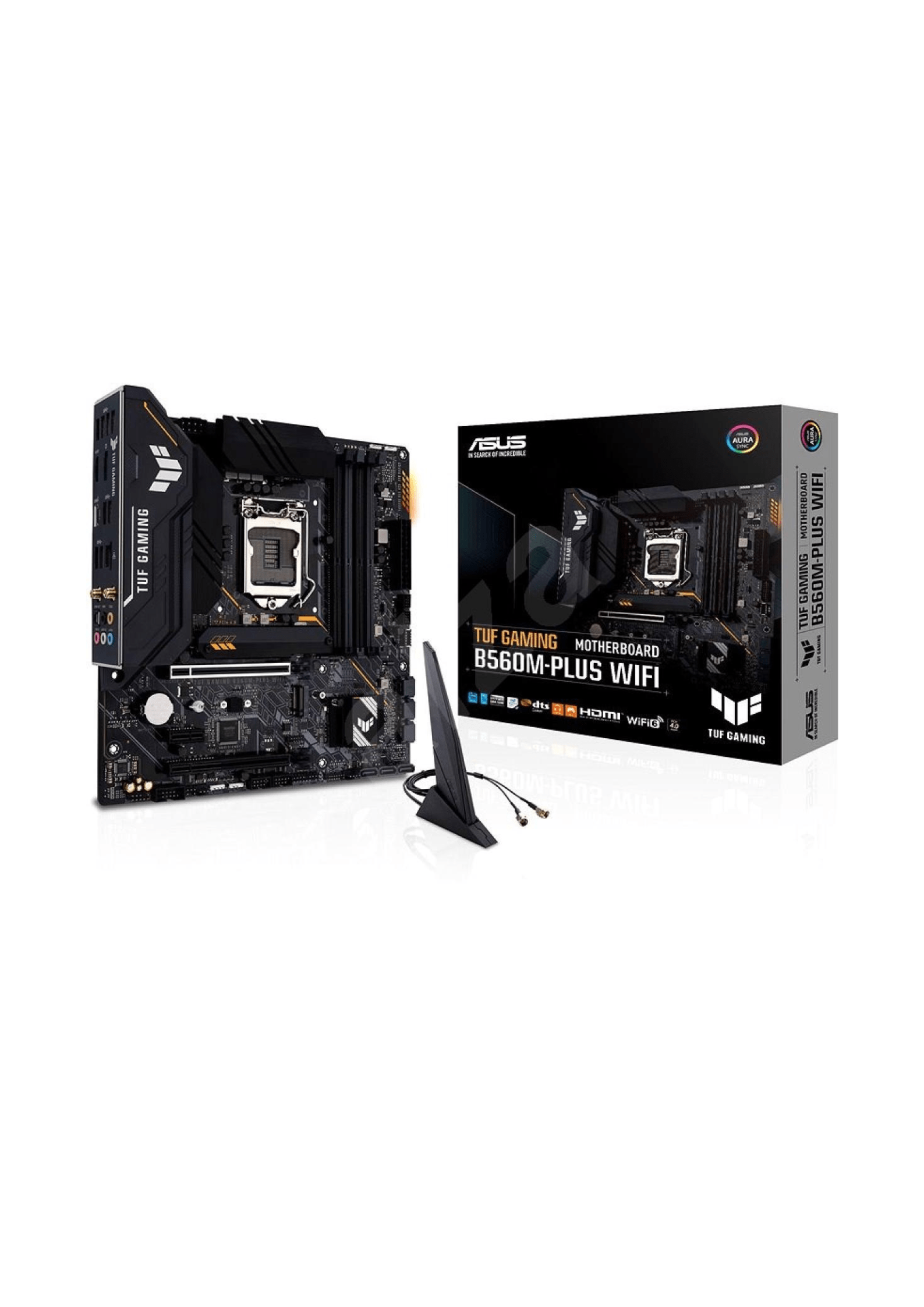

ASUS TUF Gaming B560M-PLUS WiFi 6 LGA1200 DDR4 Gaming Motherboard

Available for Instock
Estimated Delivery: 2-3 days

• CPU Support:
  • Intel® Core™ 11th Gen (LGA1200)
  • Intel® Core™ 10th Gen (LGA1200)
  • Intel® Pentium® Gold & Celeron®
  • Supports Intel® Turbo Boost 2.0 & Turbo Boost Max 3.0
• Chipset:
  • Intel® B560
• Memory:
  • 4× DDR4 DIMM slots
  • Up to 128GB capacity
  • Speeds: DDR4 2133 → 5000 MHz (OC)
  • Dual-channel architecture
  • Supports Intel® XMP (Extreme Memory Profile)
  • 10th Gen CPUs: native 2933/2666 MHz (i7/i9)
  • 11th Gen CPUs: native 3200 MHz
• Expansion Slots:
  • 1× PCIe 4.0/3.0 x16 (from CPU)
    • PCIe 4.0 (11th Gen)
    • PCIe 3.0 (10th Gen)
  • 1× PCIe 3.0 x16 (x4 mode from chipset)
  • 1× PCIe 3.0 x1 (from chipset)
  • M.2 Slots: Yes
• Ports:
  • 2× USB 3.2 Gen 2 (Type-A)
  • 3× USB 3.2 Gen 1 (2× Type-A, 1× Type-C®)
  • 4× USB 2.0 (Type-A)
  • 1× HDMI™
  • 1× DisplayPort
  • 1× Realtek 2.5Gb Ethernet
  • 5× Audio jacks
  • 1× Optical S/PDIF out
• Form Factor:
  • mATX
