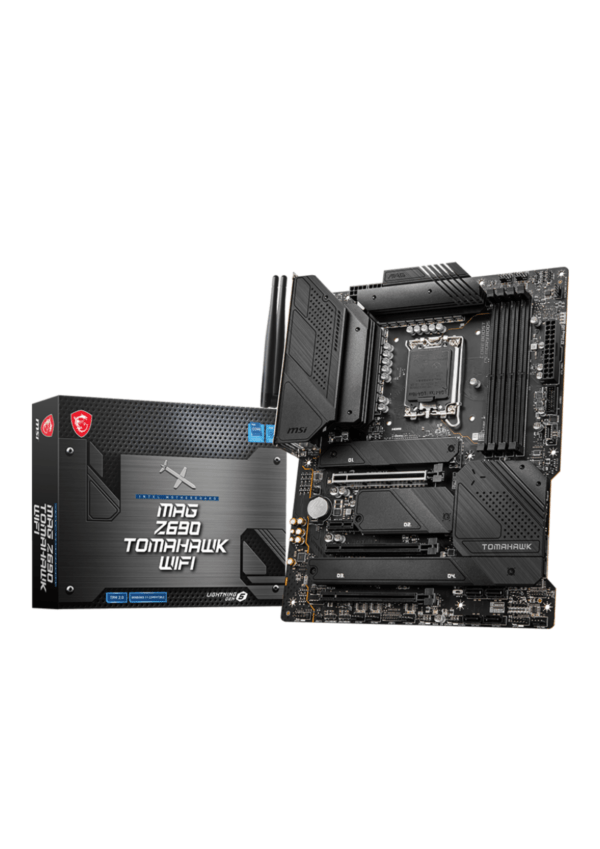

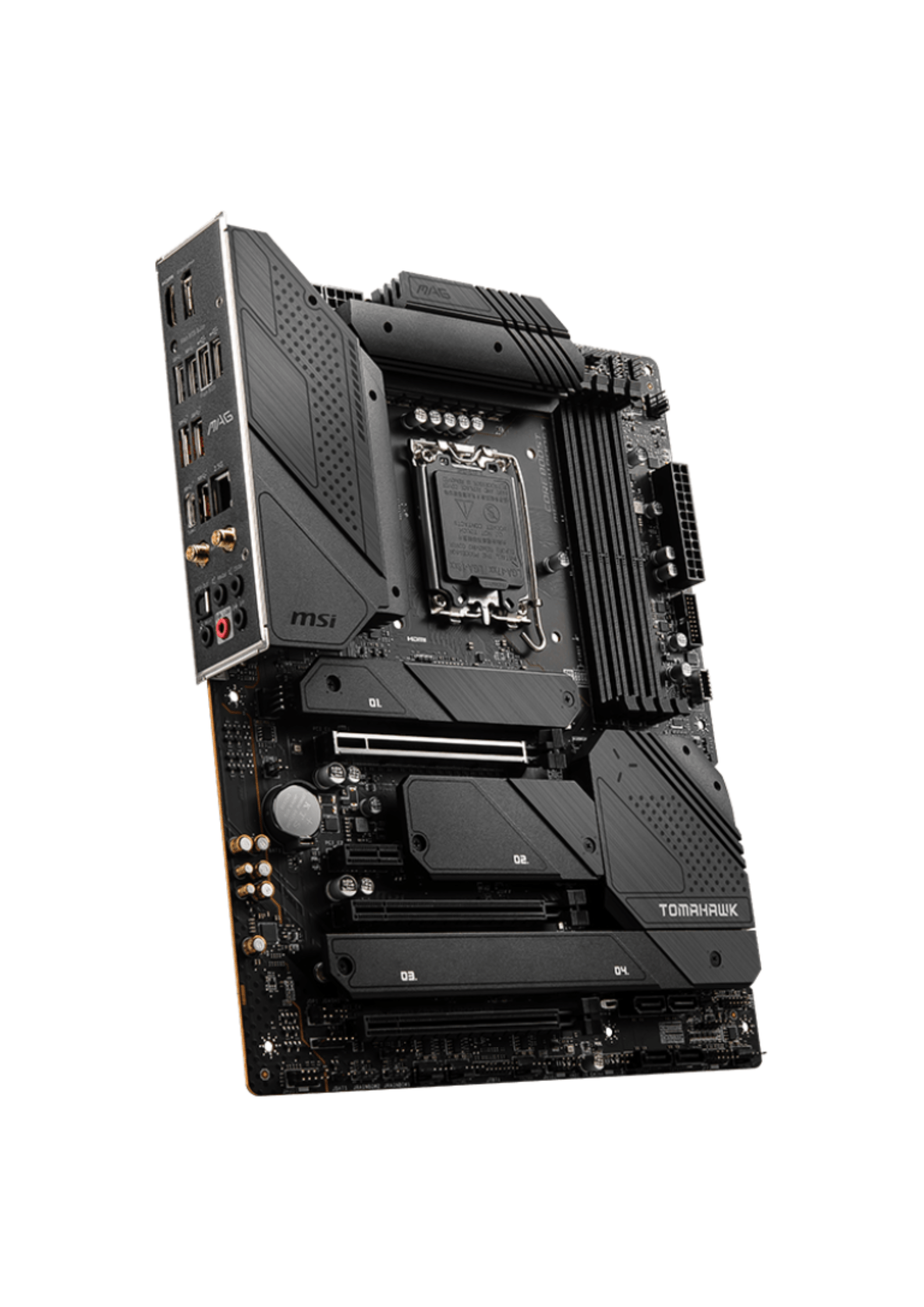

MSI Mag Z690 Tomahawk Wi-Fi Intel LGA1700 DDR5 ATX

Available for Preorder
Estimated Delivery: 7-12 days

• Socket: LGA 1700
• Chipset: Intel® Z690
• CPU Support: 12th and 13th Gen Intel® Core™ Processors
• Type: DDR5
• Supported Speeds: 6400+(OC), 6200(OC), 6000(OC), 5800(OC), 5600 (JEDEC), 5400 (JEDEC), 5200 (JEDEC), 5000 (JEDEC), 4800 (JEDEC) MHz
• Channels: Dual
• Slots: 4 x DIMM
• Max Capacity: 192GB
• PCI-E x16: 3
• PCI-E x1: 1
• SATA III Ports: 6
• M.2 Slots: 4
• RAID Support: 0, 1, 5, 10
• WiFi & Bluetooth: Intel® Wi-Fi 6E module
• Front USB:
• 1 x USB 3.2 Gen 2 (Type-C)
• 2 x USB 3.2 Gen 1 (Type-A)
• 4 x USB 2.0

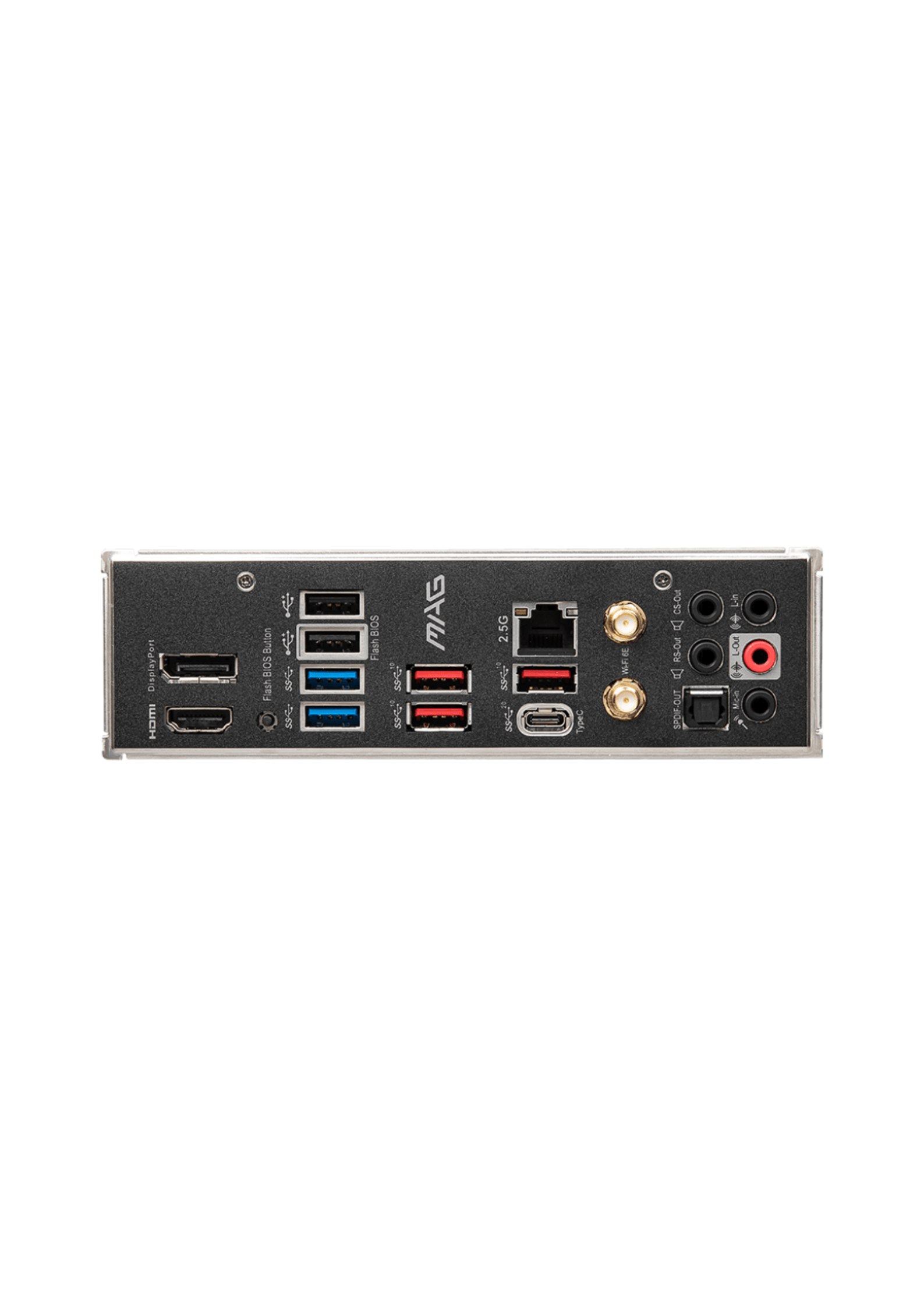

• Rear USB:
• 1 x USB 3.2 Gen 2×2 (Type-C)
• 3 x USB 3.2 Gen 2 (Type-A)
• 2 x USB 3.2 Gen 1 (Type-A)
• 2 x USB 2.0
• Audio Codec: Realtek® ALC4080
• Audio Ports (Rear): 5 + Optical S/PDIF
• Video Output:
• 1 x DisplayPort
• 1 x HDMI
• DirectX: 12 support
• CrossFire: Supported
• Form Factor: ATX
• Dimensions: 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
